6 inch LED Commercial Ceiling Light Sloped Ceiling Reflector Round Trim

6 inch LED Commercial Ceiling Light Sloped Ceiling Reflector Round Trim

SKU: 666561419936

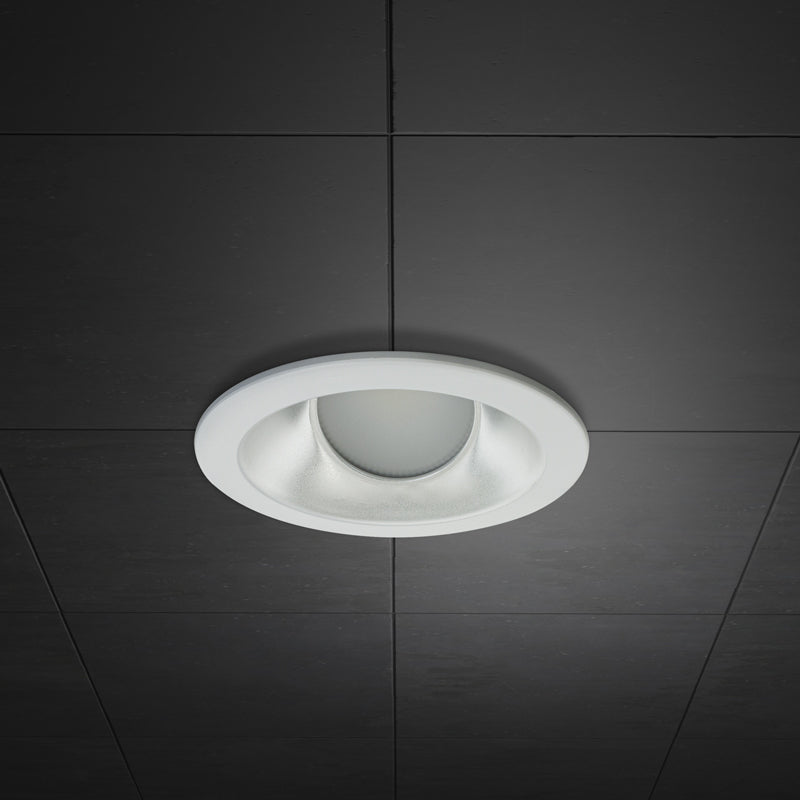

VBD-COM-6-xxxx-6SLR 6 inch LED Commercial Downlight Sloped Ceiling Reflector Round Trim with Input Voltage 120-347V AC, Wattage 20W, Brightness 1650Lm, Choose the options which best suits you. Warm White (3000K), Natural White (4000K), and Daylight (5000K). The 20W engine is compatible with all commercial lighting reflector trims (CPS series Model). Applicable for Indoor use only (dry and damp locations)



  • Model No:
    VBD-COM-6-3K-6SLR
    VBD-COM-6-4K-6SLR
    VBD-COM-6-5K-6SLR
  • Input Voltage: 120-347V AC
  • Wattage: 20W
  • Input Current: 0.2A
  • Available Color Temperature:
    3000K (Warm White)
    4000K (Natural White)
    5000K (Daylight)
  • Brightness: 1650Lm
  • Frequency: 50-60 Hz
  • Beam Angle: 65º
  • Ceiling Sloped Angle: 35º
  • Trim Type: Open reflector trim
  • Mounting Plate (Sold Separately):
    VBD-MP-UNV-346  SKU: 666561433796
  • Color: White
  • Lifespan: 50,000 hours
  • Dimmable: Yes (0-10 Dimming)
  • Package Content:
    J Box structured engine
    Reflector trim
  • Dimensions (Reflector):
    Diameter- 193.6mm (7.6 inch)
    Overall depth- 171.45mm (6.75 inch)
  • Dimensions (Cut Size):
    146mm (5.75 inch)
  • Certification: UL/ Energy Star


Beam Details
Beam Angle 65º

 Metric Imperial
Distance  Beam Width Lux
1m 1.3m 1519 lx
2m 2.5m 380 lx
3m 3.8m 169 lx
4m 6.4m 95 lx
5m 6.4m 61 lx
Distance Beam With
Footcandles
3.3ft 4.2ft 141 fc
6.6ft 8.4ft 35 fc
9.8ft 12.5ft 16 fc
13.1ft 16.7ft 9 fc
16.4ft 20.9ft 6 fc
